Jetpack Compose continues to evolve, and with the introduction of the new FlexBox layout, we finally have a powerful, flexible way to design adaptive UIs — inspired by the CSS Flexbox model.
- If you’ve ever used Row, Column, or FlowRowYou’ll feel right at home. FlexBox acts as a superset, combining their capabilities while providing granular control over alignment, wrapping, and item distribution.
- Until now, we had to choose between rigid layouts (Row/Column) or more dynamic ones (FlowRow/FlowColumn).
- FlexBox merges the best of both worlds — flexibility and simplicity.
What Is FlexBox?
- Composable brings the concept of flexible layouts from the web into Jetpack Compose.
- Arranges its children dynamically, allowing them to grow, shrink, or wrap based on available space and configuration.
FlexBox API
🏗️ Building blocks and their roles.
FlexBox
The main composable responsible for arranging children.
FlexBox(
config = {
direction(FlexDirection.Row)
wrap(FlexWrap.Wrap)
justifyContent(FlexJustifyContent.SpaceBetween)
alignItems(FlexAlignItems.Center)
gap(8.dp)
},
modifier = Modifier
.border(1.dp, Color.Black)
) {
Text(
"Item 1",
Modifier
.flex {
grow(1f)
}
.background(color = randomColor())
.border(1.dp, Color.Black)
)
Text(
"Item 2",
Modifier
.flex {
basis(80.dp)
}
.background(color = randomColor()))
}
FlexBoxConfig
Configures the container’s layout behavior — direction, wrapping, justification, alignment, and spacing.
Key parameters:
- direction: Controls the main axis (Row, Column).
- wrap: Determines if items flow onto new lines.
Here we have 3 options: Wrap, NoWrap, WrapReverse - justifyContent: Distributes space along the main axis(start, end, etc).
- alignItems: Defines how items align on the cross-axis(start, end, etc).
- alignContent: Controls how multiple lines are distributed along the cross-axis.
This applies only when the wrap is FlexWrap.Wrap or FlexWrap.WrapReverse and there are multiple lines of items.
- gap: Adds spacing between items (horizontal and vertical).
Modifier.flex
- Used to fine-tune each child’s flexibility and order within the layout.
Supported parameters:
- grow: Defines how much an item can expand relative to others.
- shrink: Dictates how an item shrinks to avoid overflow.
- basis: Sets the item’s initial size before it grows or shrinks.
- order : Determines the display order within the FlexBox.
- alignSelf: Overrides container alignment for a specific child.

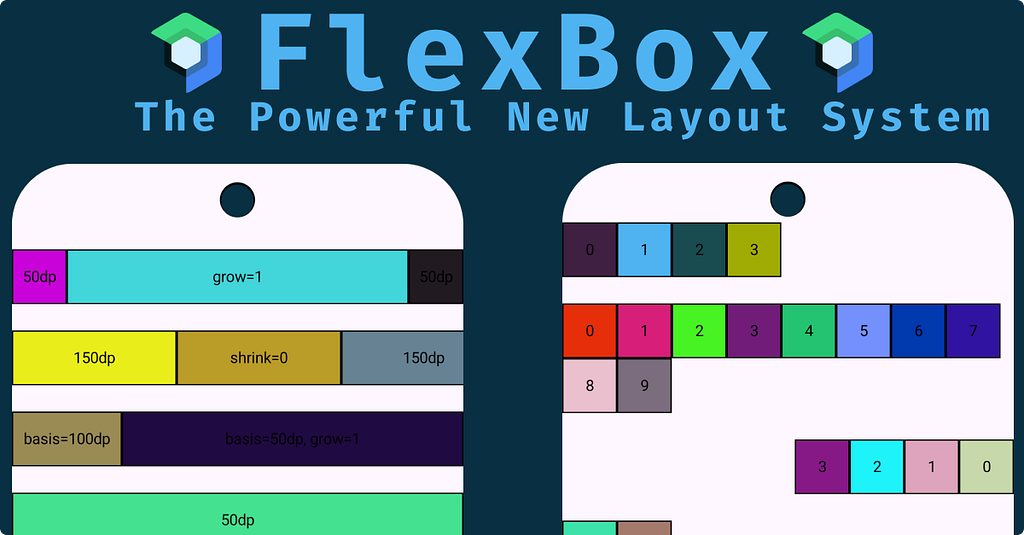

Code Samples
- FlexBox + Row + Flex + Grow + Basis
@Composable
fun FlexBoxRowFlexGrow() {
FlexBox(
modifier = Modifier
.fillMaxWidth()
.border(1.dp, Color.Black)
) {
Box(
modifier =
Modifier
.width(50.dp)
.height(50.dp)
) {
Text(text = "50dp")
}
Box(
modifier =
Modifier
.width(50.dp)
.height(50.dp)
.flex {
grow(1f)
basis(50.dp)
}
) {
Text(text = "grow=1")
}
Box {
Text(text = "50dp")
}
}
}
- FlexBox + Column + FlexGrow
@Composable
private fun FlexBoxColumnFlexGrowSample() {
FlexBox(
config = { direction(FlexDirection.Column) },
modifier = Modifier
.height(300.dp)
.border(1.dp, Color.Black),
) {
Box {
Text(text = "50dp")
}
Box(
modifier =
Modifier
.height(50.dp)
.flex { grow(1f) }
) {
Text(text = "grow=1")
}
Box {
Text(text = "50dp")
}
}
}
- FlexBox + RowWrap
@Composable
private fun FlexBoxRowWrapDemo() {
FlexBox(
config = {
direction(FlexDirection.Row)
wrap(FlexWrap.Wrap)
}
) {
repeat(10) {
Box(
modifier = Modifier
.size(50.dp)
) {
Text(text = "$it")
}
}
}
}
- FlexBox + RowReverse
@Composable
private fun FlexBoxRowReverse() {
FlexBox(
config = { direction(FlexDirection.RowReverse) },
modifier = Modifier.fillMaxWidth()
) {
repeat(4) {
Box(
modifier = Modifier.size(50.dp)
) {
Text(text = "$it")
}
}
}
}
References
Stay in touch
https://www.linkedin.com/in/navczydev/
